فروش آداپتور  FC-FC گرد  D-Hole

We supply FC fiber optic adapters, including square type, single D type and double D types, in single mode and multimode versions. All these adapters are with metal housing and ceramic sleeves, for multimode FC fiber adapter there is optional bronze housing types.



FC-Simplex( SM D-type)

FC-Simplex( SM solid)

FC-Simplex( SM 2-body)

FC-Simplex( SM Oval)

FC-Simplex( SM Rectagular)



FC-Simplex( APC D-type)

FC-Simplex( APC solid)

FC-Simplex( APC 2-body)

FC-Simplex( APC Oval)

FC-Simplex( APC Rectagular)



FC-Simplex( MM D-type)

FC-Simplex( MM solid)

FC-Simplex( MM 2-body)

FC-Simplex( MM Oval)

FC-Simplex( MM Rectagular)



FC SIMPLEX ADAPTOR ROUND METAL

FC SIMPLEX ADAPTOR SQUARE METAL

FC SIMPLEX ADAPTOR SQUARE PLASTIC

FC DUPLEX ADAPTOR SINGLEMODE (OS1)

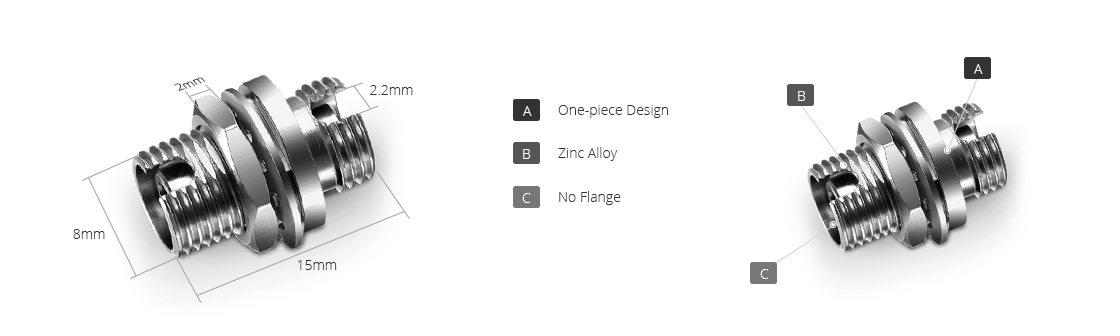

The FC square fiber optic adapter is available in the standard body styles with nickel plated brass or nickel plated zinc housing. FC round fiber optic adapters come with a choice of D Flange (ø8.85 x 7.95mm) or double D Flange (ø9.35 x 7.65mm), and feature nickel plated brass housing for corrosion resistance.

Product Description

FC fiber optical adapter

There are three kinds of FC fiber optical adapter, square type, single D type and double D type, all FC fiber optical adapter are with metal housing, all FC Fiber optical adapter are with zirconia sleeves,

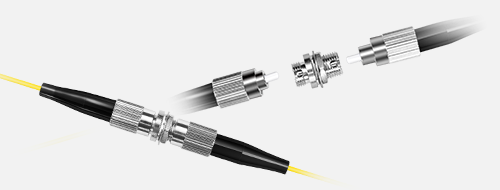

Fiber optical adapter are used to link fiber optic patch cables or fiber optic connectors. We supply various kinds of fiber optical adapter; Types including single mode and multimode, LC, SC, ST, MU, FC, MTRJ, E2000, SMA, etc. These fiber optical adapter are reliable performance and good prices.

Because the fiber optical adapter should fit the according connectors, the fiber optical adapter sides and shape are made as per the connectors. Generally, ST fiber optical adapter and FC fiber optical adapter are metal body, LC, SC, MU, MTRJ, E2000 types are non-metal body.

The fiber optical adapter are many types because of the diversity of the connectors. There are female to female fiber optical adapter, and there are female to male type fiber optical adapter. If the fiber optical adapter is going to fit two different kinds of fiber optic connector, it is called hybrid fiber optical adapters, such as LC to SC hybrid fiber optical adapter. Fiber optical adapter are simplex and duplex types.

Applications:

1. Telecommunication

2. CATV

3. LAN & WAN

4. Network

5. Broadband

6. FTTP

Features:

1. Simplex and duplex panel cutouts

2. Panel clip for easy installation

3. Increase panel density and quick plug in installation

4. Available in several standard colors

5. Meet bellcore GR-326 standard

6. Insertion loss: SM<0.3dB, MM<0.5dB

7. Durability (500 Mating): 0.2dB Max Increase

8. Operating temperature: -40º C~85º C

9. Storage temperature: -40º C~85º C

FC fiber optic adapter applications

CATV

Telecommunication networks

Local Area Networks (LANs)

Metro networks

Data processing networks

Industrial, military and medical

FC fiber optic adapter features

Compact design

NTT-FC compatibility

High precision alignment

Low insertion and return loss and back reflection*

Corrosion resistant body

———————————-

Simplex metal Single mode FC/UPC Squared Fiber Optic Adapters are designed for mounting in standard round cut out style panels. This series features either bronze or ceramic alignment sleeves to meet your specific design requirements. Additionally, these Single mode FC/UPC Squared Fiber Optic Adapter are good price and fast delivery. Contact us today for large project volume discounts.

Single mode FC/UPC Squared Fiber Optic Adapters APPLICATIONS

CATV

Telecommunication networks

Local Area Networks (LANs)

Metro networks

Data processing networks

Industrial, military and medical

Single mode FC/UPC Squared Fiber Optic Adapters FEATURES

Compact design

Telcordia, ANSI, TIA/EIA, NTT and JIS compliance*

High precision alignment

Low insertion and return loss and back reflection*

Choice of metal or plastic housing, mount styles & flange options

———————————-

Simplex metal Single mode FC/UPC Single D Fiber Optic Adapters are designed for mounting in D shaped holes used for simplex ST couplers. This series features either bronze or ceramic alignment sleeves to meet your specific design requirements. Additionally, these Single mode FC/UPC Single D Fiber Optic Adapter are good price and fast delivery. Contact us today for large project volume discounts.

Single mode FC/UPC Single D Fiber Optic Adapters APPLICATIONS

CATV

Telecommunication networks

Local Area Networks (LANs)

Metro networks

Data processing networks

Industrial, military and medical

Single mode FC/UPC Single D Fiber Optic Adapters FEATURES

Compact design

NTT-FC compatibility

High precision alignment

Low insertion and return loss and back reflection*

Corrosion resistant body

————————————

Simplex metal Single mode FC/UPC Double D Fiber Optic Adapters are designed for mounting in D shaped holes used for simplex ST couplers. This series features either bronze or ceramic alignment sleeves to meet your specific design requirements. Additionally, these Single mode FC/UPC Double D Fiber Optic Adapter are good price and fast delivery. Contact us today for large project volume discounts.

Single mode FC/UPC Double D Fiber Optic Adapters APPLICATIONS

CATV

Telecommunication networks

Local Area Networks (LANs)

Metro networks

Data processing networks

Industrial, military and medical

Single mode FC/UPC Double D Fiber Optic Adapters FEATURES

Compact design

NTT-FC compatibility

High precision alignment

Low insertion and return loss and back reflection

Corrosion resistant body
