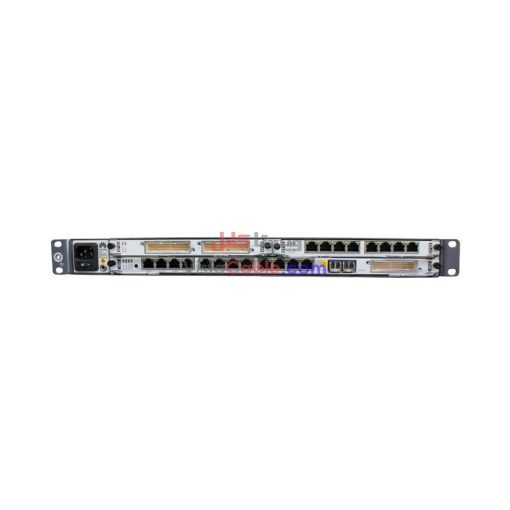

قیمت هواوی OptiX OSN 500 HUAWEI
63E1-16 PORT ETH
با ما تماس بگبرید
فروش هواوی OptiX OSN 500 HUAWEI 63E1-16 PORT ETH
نمایندگی هواوی OptiX OSN 500 HUAWEI 63E1-16 PORT ETH
حمایت از انواع حالت های دسترسی به خدمات، OptiX OSN 500 نسل جدید محصول انتقال نوری با SDH خالص یا معماری بسته است، تکمیل … تست سیستم انتقال نوری و حد عالی رساندن لبه رقابتی انتقال نوری خط تولید است.
OptiX OSN 500 Product Specifications
| System Features | ||||||
|---|---|---|---|---|---|---|
| Subrack dimensions | 44mm (H) x 442mm (W) x 220mm(D) | |||||
| Switching capacity | Packet: 7.2 Gbit/s or TDM: 20 Gbit/s (higher order), 5 Gbit/s (lower order) | |||||
| Service slots | 2 service interface slots | |||||
| Supported interfaces | Packet transport interfaces | E1, ch STM-1, ATM STM-1,FE/GE | ||||
| MSTP interfaces | STM-1/4, E1/E3/T1/T3, FE/GE | |||||
| WDM interfaces | 40-channel DWDM interfaces, compliant with ITU-T G.694.1 8-channel CWDM interfaces, compliant with ITU-T G.694.2 |
|||||
| Networking Mode | Supports pure packet or SDH networking Supports WDM networking Supports single-fiber bidirectional transmission |
|||||
| Power Supply | -38.4~-72V DC; 110/220V AC | |||||
| Installation | ETSI rack with 300mm/600mm depth 19-inch rack Wall-mount Desktop Out-door cabinet |
|||||
| Weight | ≤ 5 kg | |||||
| Operation Environment | Temperature Relative Humidity Long term: -5°C ~ 55°C 10% ~ 90% Short term: -5°C ~ 65°C 5% ~ 95% |
|||||
| Packet Transport Features | ||||||
| Service features | E-Line and E-LAN QinQ MPLS-TP based VPWS and VPLS Multi-section pseudo-wire (MS-PW) TDM PWE3: CESoPSN and SAToP, compression of idle timeslots ATM/IMA PWE3 ETH PWE3 IGMP SNOOPING V2 Blacklist, Broadcast packet suppression, ACL VLAN SWAP |
|||||
| QoS features | DiffServ mode based on traffic classification Simple traffic classification, complex traffic classification, per hop behavior (PHB), and ACL Committed access rate (CAR) PQ scheduling priority, weighted round robin (WRR) and PQ+WRR queuing Tail drop and weighted random early detection (WRED) Eight priority queues Shaping based on port scheduling priority |
|||||
| Hardware-based OAM | MPLS OAM | LSP/PW OAM: FDI, BDI CV, FFD, TraceRoute, Ping CES PW VCCV |
||||
| MPLS-TP OAM | LSP/PW OAM: CC、LB、LT AIS、RDI LM、DM LCK、TST CSF |
Section OAM: CC、LB RDI LM、DM LCK、TST |
||||
| Ethernet OAM | ETH-CC(Continuity Check)、ETH-Loopback、ETH-Link Trace Remote Loopback、Remote Fault Detection |
|||||
| ATM OAM RMON(RFC 2819) Flexible design with multiple protocols |
||||||
| Carrier-class protection | LSP/PW Linear protection MPLS-TP Ring protection ERPS(G.8032) Anti multifailure protection based on MS-PW Link aggregation group (LAG) protection LPT STP/RSTP/MSTP IMA protection 1+1 and 1:1 Linear MSP |
|||||
| Clock synchronization | One external clock input/output (2 MHz or 2 Mbit/s) two external time signals（1pps+TOD） Adaptive clock recovery (ACR) Synchronous Ethernet IEEE 1588v2 |
|||||
| MSTP Features | ||||||
| Carrier-class protection | SDH Network Protection 2-fiber MS-SP Ring; 1+1, 1:n (n<=14) Linear MSP; SNCP; Fiber shared virtual path protection Ethernet Service Protection RSTP, LAG, LPT |
|||||
| Clock synchronization | One external clock inputs/outputs (2 MHz or 2 Mbit/s) Line clock source Tributary clock source |
|||||
