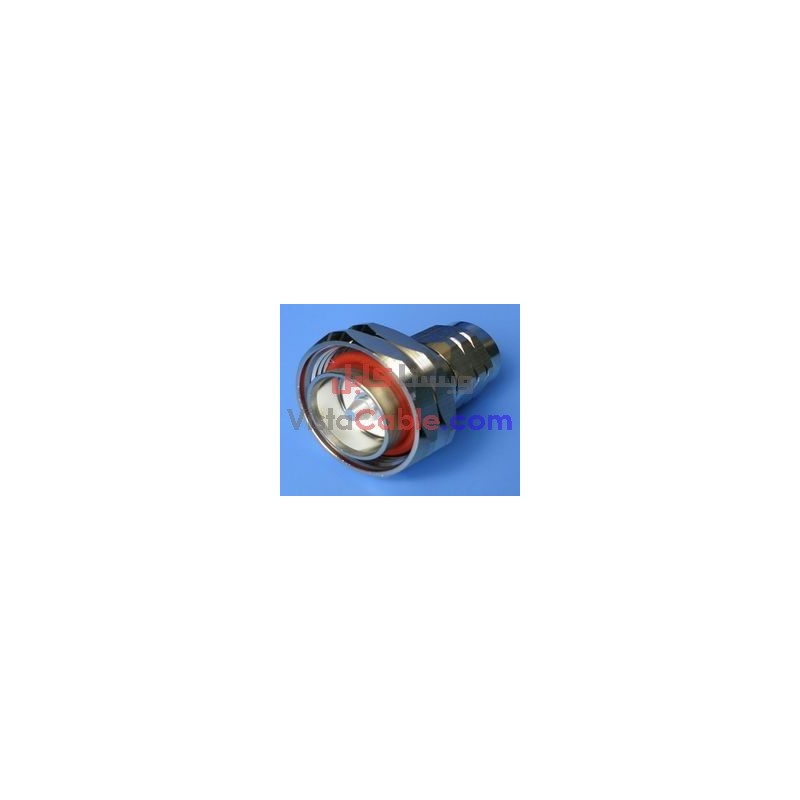

7/16 DIN Male To N Female RF 716M-NF مبدل 7/16 به N Type آدپتور کواکسیال Coaxial Adapter Connector

7/16 DIN Male To N Female RF 716M-NF  آدپتور کواکسیالCoaxial Adapter Connector

DIN (M) to N (F)

N Jack To 7/16 Plug

L29 7/16 male plug to N female jack straight adapter

7/16 DIN Male to N  Female Adaptor  آداپتور کواکسیال

استاندارد: MIL-C-39012;CECC-22210;IEC 60169-16

استاندارد : DIN-47223;CECC-22190;IEC-60169-4

امکانات Features:

Electrical characteristics:

1) Coupling style: screw-coupling

2) Impedance: 50 ohm

3) Frequency range: 0 to 7.5GHz

4) Contact resistance: center conductor: max 1.0M ohm

5) Outer conductor: max 0.5Mohm

6) Insulation resistance: max 10,000Mohm

7) Dielectric withstanding voltage: 2,700V

8) VSWR: max 1.25

9) Durability: 500 cycles

10) Mating:M29*1.5 threaded coupling

Material and finish مواد اولیه و پرداخت :

1) Body & Outer Contact: Brass with silver or white bronze plating

2) Inner Contacts: Beryllium copper with silver plating

3) Other Metal Parts : Brass with silver or white bronze plating

4) Insulators: PTFE

5) Weatherproof Gaskets: Silicone rubber

Applications موارد استفاده :

1) Antennas

2) Base Stations

3)Broadcast

4) Cable  Assembly

5) Components

6) Lightning Protecction

7) Satcom

Note:

1) These characteristics are typical but may not apply to all connectors.

2) OEM and ODM are available.
